Linux Integration with MS Active Directory

Linux integrates well with Microsoft Active Directory using Samba Winbind, Kerberos, and Pam modules. Your Linux server can be setup to login using your Windows credentials, mount drives automatically based on the Active Credentials, and manage sessions using Kerberos tickets. Please note that applications such as Firefox need to understand Kerberos and be configured properly to work with Kerberos sessions.Here we assume that your AD server also hosts the Kerberos service.

Package requirements (Redhat EL 5 tested):

RPM:

• krb5-devel
• krb5-libs
• pam_krb5
• pam_krb5
• krb5-auth-dialog
• krb5-workstation
• krb5-devel
• krb5-libs
• samba-common
• samba-client
• samba
• system-config-samba
• samba-common
• pam_smb
• gnome-vfs2-smb
• pam_smb

Sources:

• libHX-3.2
• pam_mount-1.33

SAMBA

Create file “/etc/samba/smb.conf”:

[global]

workgroup = WORKGROUP

password server = AD-SERVER.TLD

realm = your.TLD

security = ads

idmap uid = 16777216-33554431

idmap gid = 16777216-33554431

template shell = /bin/bash

winbind use default domain = true

winbind offline logon = true

interfaces = eth0 lo

bind interfaces only = yes

socket options = SO_KEEPALIVE SO_KEEPALIVE IPTOS_LOWDELAY TCP_NODELAY

encrypt passwords = yes

winbind enum groups = yes

winbind enum users = yes

winbind cache time = 1800

domain master = no

time server = yes

passdb backend = tdbsam

netbios name = WINDOWS-MACHINE-NAME

printcap name = cups

cups options = raw

map to guest = Bad User

logon path = \\%L\profiles\.msprofile

logon home = \\%L\%U\.9xprofile

logon drive = P:

winbind refresh tickets = yes

[homes]

comment = Home Directories

valid users = %S, %D%w%S

browseable = No

read only = No

inherit acls = Yes

[profiles]

comment = Network Profiles Service

path = %H

read only = No

store dos attributes = Yes

create mask = 0600

directory mask = 0700

[users]

comment = All users

path = /home

read only = No

inherit acls = Yes

veto files = /aquota.user/groups/shares/

[groups]

comment = All groups

path = /home/groups

read only = No

inherit acls = Yes

[printers]

comment = All Printers

path = /var/tmp

printable = Yes

create mask = 0600

browseable = No

[print$]

comment = Printer Drivers

path = /var/lib/samba/drivers

write list = @ntadmin root

force group = ntadmin

create mask = 0664

directory mask = 0775

KERBEROS

Create file “/etc/krb5.conf”:

[logging]

default = FILE:/var/log/krb5libs.log

kdc = FILE:/var/log/krb5kdc.log

admin_server = FILE:/var/log/kadmind.log

[libdefaults]

default_realm = your.TLD

dns_lookup_realm = true

dns_lookup_kdc = true

ticket_lifetime = 120h

renew_lifetime = 14d

forwardable = yes

[realms]

AD-SERVER.TLD = {

kdc = AD-SERVER.TLD

admin_server = AD-SERVER.TLD

default_domain = AD-SERVER.TLD

}

[domain_realm]

.your.tld = YOUR.TLD

your.tld = YOUR.TLD

[appdefaults]

pam = {

debug = false

ticket_lifetime = 36000

renew_lifetime = 36000

forwardable = true

krb4_convert = false

}

Automount CIFS shares (U-Drive)

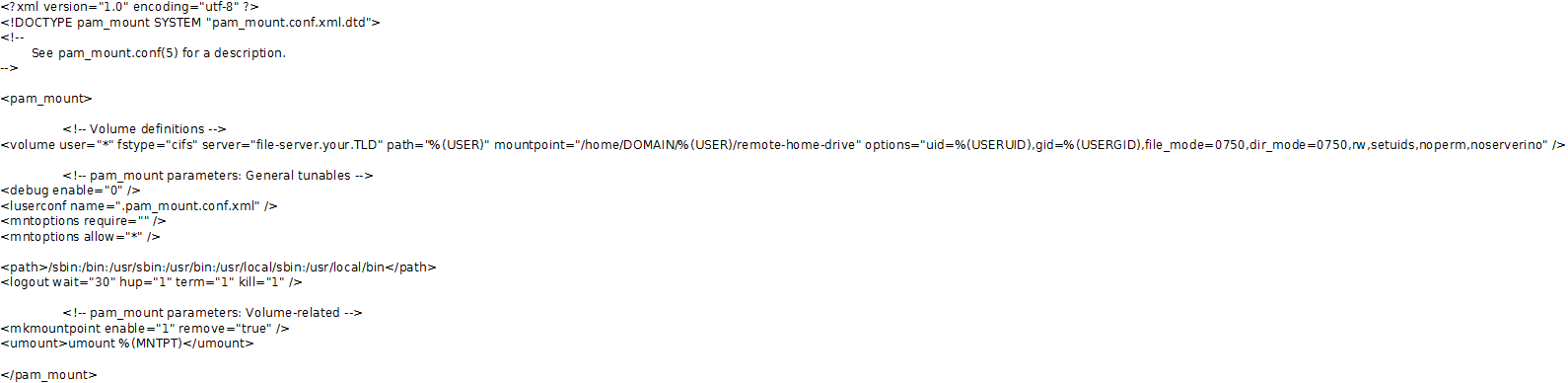

Create file “/etc/security/pam_mount.conf.xml”:

Create file “/etc/pam.d/system-auth-ac”:

#%PAM-1.0

# This file is auto-generated.

# User changes will be destroyed the next time authconfig is run.

auth required pam_mount.so

auth required pam_env.so

auth sufficient pam_unix.so nullok try_first_pass

auth requisite pam_succeed_if.so uid >= 500 quiet

auth sufficient pam_krb5.so use_first_pass

auth sufficient pam_winbind.so cached_login use_first_pass

auth required pam_deny.so

account required pam_access.so

account required pam_unix.so broken_shadow

account sufficient pam_localuser.so

account sufficient pam_succeed_if.so uid < 500 quiet

account [default=bad success=ok user_unknown=ignore] pam_krb5.so

account [default=bad success=ok user_unknown=ignore] pam_winbind.so cached_login

account required pam_permit.so

password requisite pam_cracklib.so try_first_pass retry=3

password sufficient pam_unix.so md5 shadow nullok try_first_pass use_authtok

password sufficient pam_krb5.so use_authtok

password sufficient pam_winbind.so cached_login use_authtok

password required pam_deny.so

session optional pam_keyinit.so revoke

session required pam_limits.so

session optional pam_mkhomedir.so

session [success=1 default=ignore] pam_succeed_if.so service in crond quiet use_uid

session required pam_unix.so

session optional pam_krb5.so

session optional pam_mount.so

Reinit all daemons and test!
It should all work fine.
Read the documentation for Winbind/Samba, and Kerberos in detail.
